HIGH TEMPERATURE

INSULATION MATS

Mat

Silica Needled Mat (SNM)

Best suited for applications up to 1800°F and above.

Our high temperature silica needled mat (SNM) is a "no shot" mat, not itchy, made with a non-respirable fiber with diameters of ≥ 6-9 microns, randomly orientated into a uniform blanket.

Offered in thicknesses of 1", 1/2", 1/4" and 1/8". Offered as a roll and cut to size.

    • Silica Needled Mat is highly durable and offers multiple reuses.

    • SNM offers excellent thermal conductivity, is resistant to most chemicals and is best suited for applications seeing up to 1800F steady state temps (melting temperature 3100F)

    • Plus, there are no special disposal requirements for silica needled mat.

    • Pyro Shield has the ability to outgas our silica needled mat on site, in our custom furnaces, to eliminate any shrinkage while on the job site.

    • Silica needled mat offers extreme vibration resistant properties allowing it to be used for engine exhaust jacketing, turbo covers and silencers.

    • Silica Needled mat is a great replacement for ceramic fiber .

    • Gaskets and seals (annealing seals, tadpole gaskets)

    • Insulation for industrial furnaces and kilns

    • Insulation for thermal blankets, PWHT blankets

    • Removable insulation pads

    • Insulated sleeving

    • Sound suppression curtains

Fiberglass Mat (ENM)

Best suited for applications of 1200°F and below.

Our E-glass mat (ENM) is an incombustible, needled fiberglass mat composed of 100% "E" type glass fibers 9-13 microns in diameter, that are composed in a web form and mechanically needled together without chemical binders. Our E-glass mat is non-respirable and asbestos free.

Offered in 1/8", 1/2" and 1" thicknesses. Offered as a roll and cut to size.

    • E-glass is an effective, low cost replacement for asbestos mats, millboard ceramic or refractory fiber paper, and mineral fiber boards.

    • E-glass mat has vibration resistant properties allowing it to be used for engine exhaust jacketing, turbo covers and silencers.

    • Removable insulation covers

    • Sound suppression curtains

    • Heat shields

    • Gasket material

    • Insulation blankets

    • Insulated pipe wrap

    • Seals in the glass industry, oven insulators, industrial furnaces, boilers and kilns.

BB Board

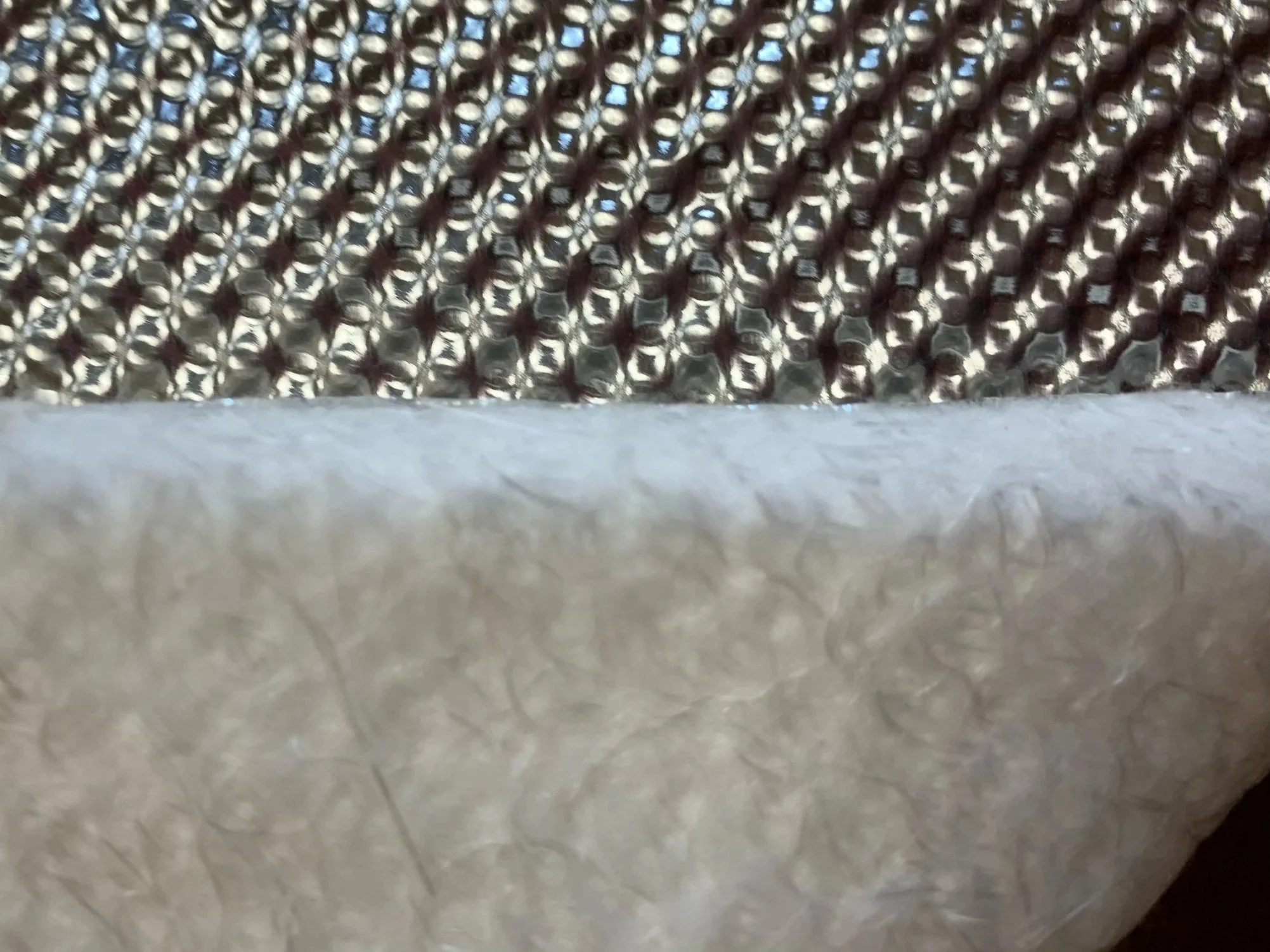

BB Board mat is composed of our 1/2" silica needled mat on the hot side and an aluminized face on the cold side.

    • BB Board is very durable and was designed to insulate and conform to most shapes while rejecting heat.

    • The texturized aluminum coating on one side will reflect heat up to 1200°F, is waterproof and will hold its shape on most any application.

    • BB Board is offered in sheets of 39” x 47 1/2” and rolls 39” x 65”.

    • Custom sizes and cut to size are also available.

    • Pipe wrap

    • Liners

    • Removable blankets

    • Flanges and valves

    • Equipment covers

    • Ideal for die cutting needs including disc like shapes

High Temperature Insulation:

 Material Name

 Temperature

 Coating

 Data Sheet
 Silica Needled Mat (SNM)   Melting Temperature: 3,100°F
 Temperature Resistance:
 1,800°F Steady State
 		  Uncoated  Data Sheet
 E-Glass Mat (ENM)  1,200°F and below  Uncoated  Data Sheet
 PS-BB Board  Temperature Resistance:
 Aluminized Side: 1,200°F
 Silica Needled Mat: 1,800°F		  Aluminum coating on backside   Data Sheet

For more information or to request a quote, click the button below or call (219) 661-8600.
